Batterie au lithium adaptée aux besoins du client du cycle profond 36V 48V 72V 50ah 80ah 100ah pour le camping-car de chariot de golf

2024-03-15 02:39

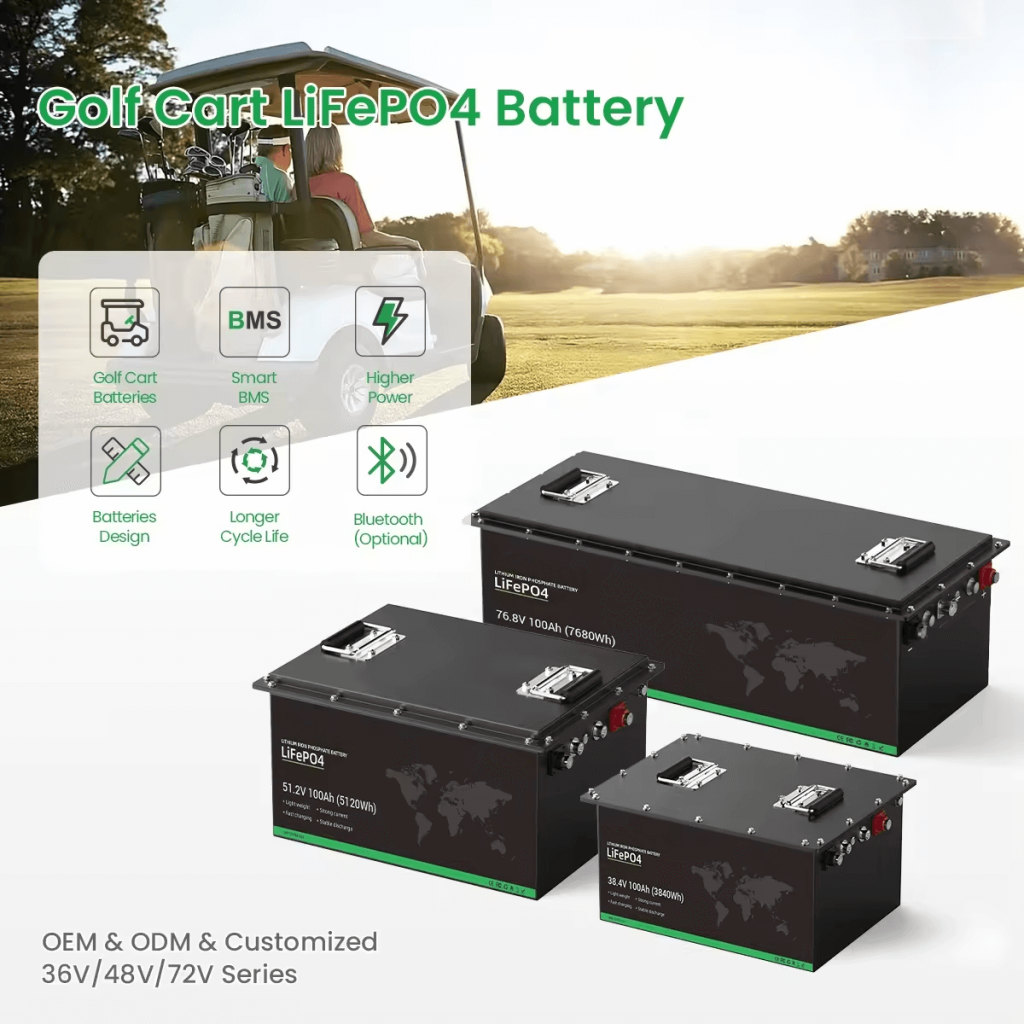

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Tension nominale	Capacité nominale	Nominal Energy	Dimension	Poids
36V  (Support Customized Capacity/Size)
LFP36-50	38,4 V	50 Ah	1920 Wh	522*238*218mm	≈18.5kg
LFP36-60	38,4 V	60 Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38,4 V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38,4 V	100 Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51,2 V	50 Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51,2 V	60 Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51,2 V	80Ah	4096Wh	522*238*218mm	≈32.5kg

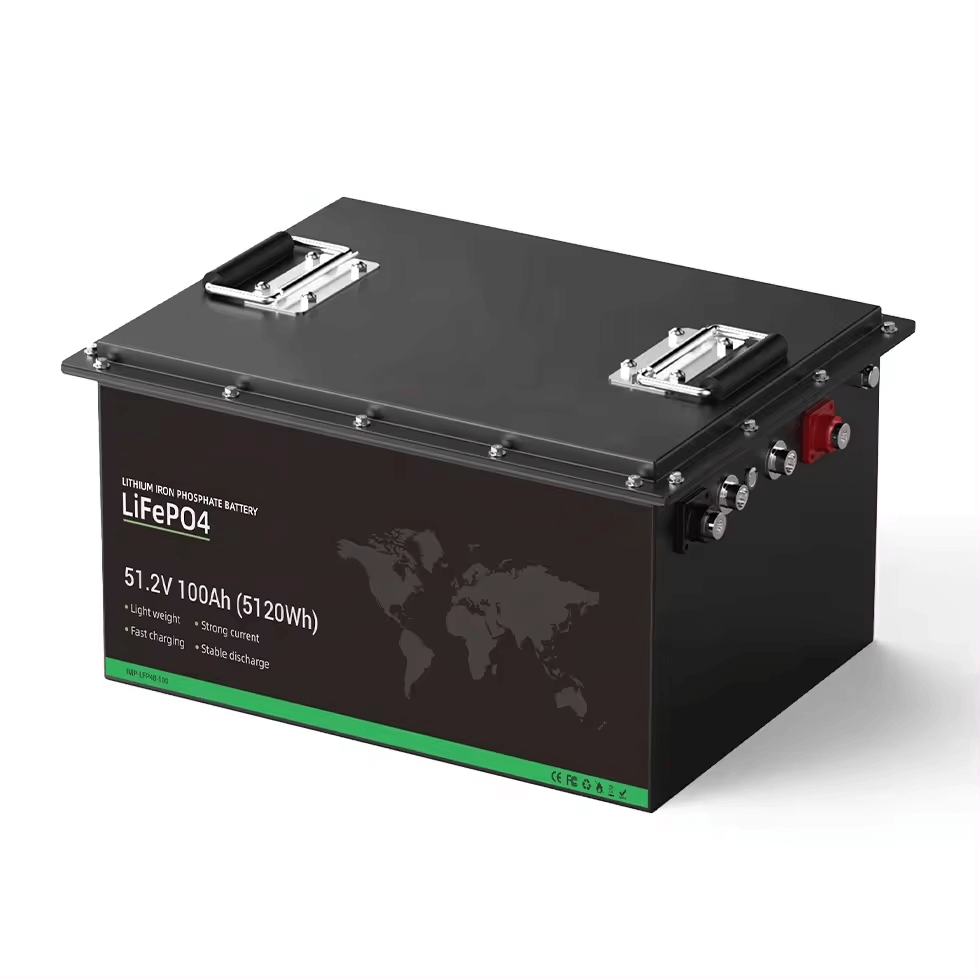

LFP48-100	51,2 V	100 Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76,8 V	50 Ah	3840Wh	470*330*150mm	≈50kg

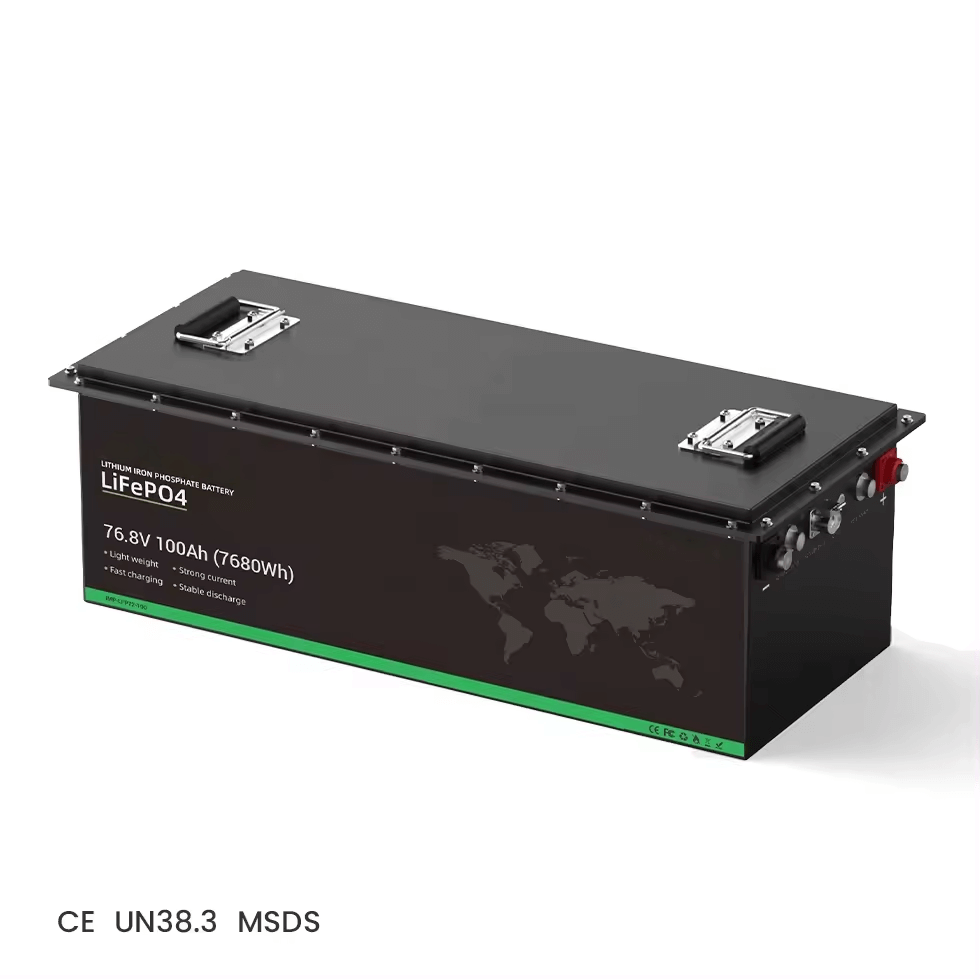

LFP72-100	76,8 V	100 Ah	7680Wh	730*350*150mm	≈65kg
General
Les cycles de la vie		≥6000 cycles (80%DOD), at 25°C
Température de charge		0 ~ 45°C (32 ~ 113°F)
Température de décharge		-20 ~ 55°C(-4 ~ 131F)
Température de stockage		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Performance

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Application

Notre usine



Expédition et emballage

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Pour les grosses commandes, expédiez par AIR ou OCEAN.

FAQ

Q: êtes-vous une société commerciale ou un fabricant?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Puis-je avoir des échantillons à tester? Et quel est le délai pour la commande d'échantillon?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: acceptez-vous OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

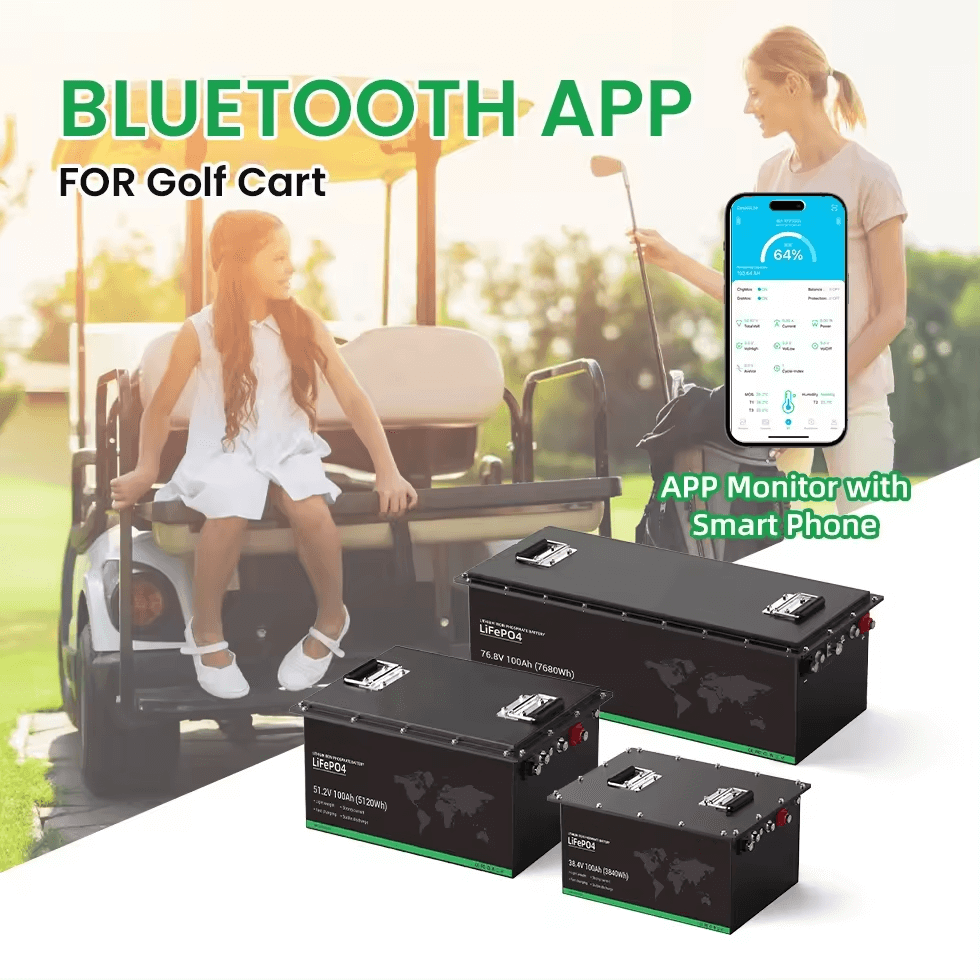

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A : OUI, l'application vous permet de lire la tension de chacun à tout moment.

Q: Êtes-vous la capacité réelle de la batterie?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: Quel type de certificats avez-vous?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q: avez-vous MOQ?
R: Pas de limite. Petite commande également bienvenue.Plus de quantité a un meilleur prix, nous vérifierons le meilleur prix pour vous.

Q: Quelle est votre condition de paiement?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
R : Utiliser des chargeurs au lithium pour réveiller la batterie. Le chargeur au lithium réveille automatiquement les batteries.
