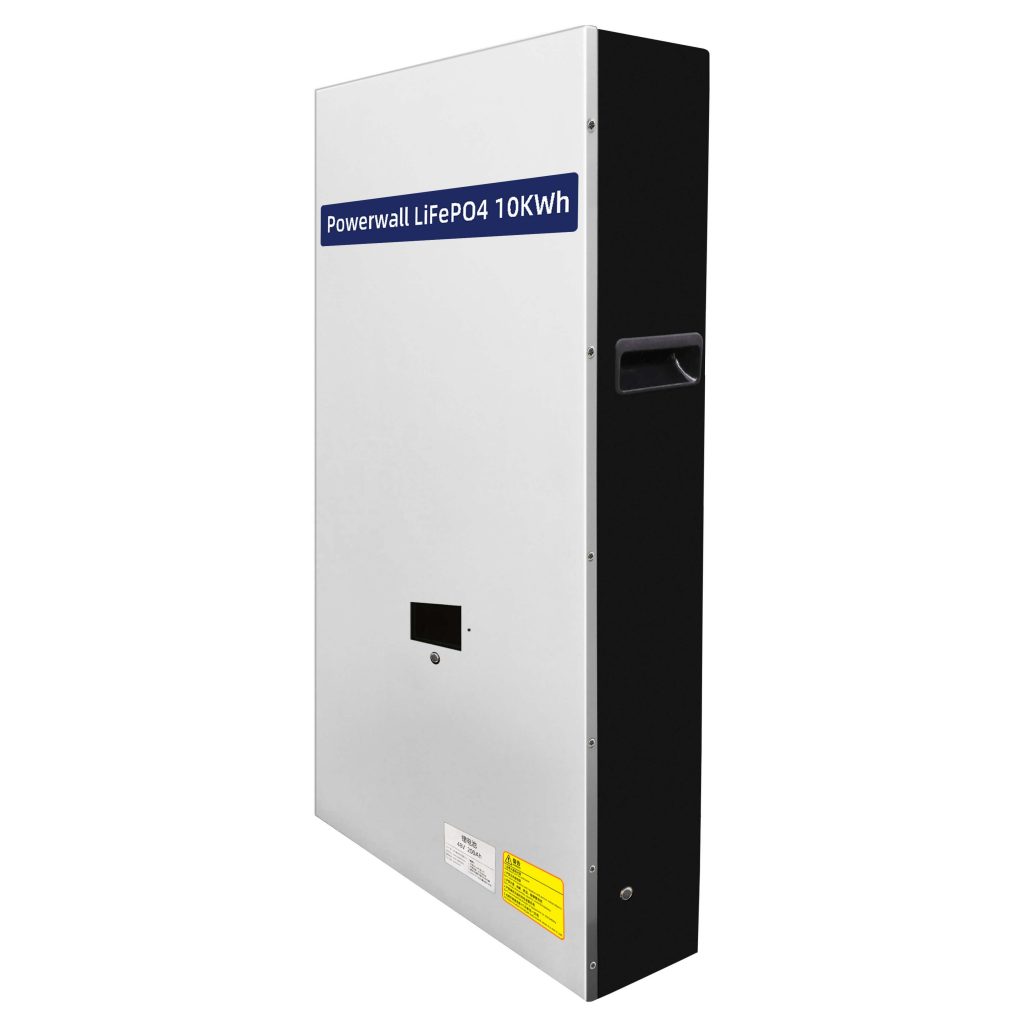

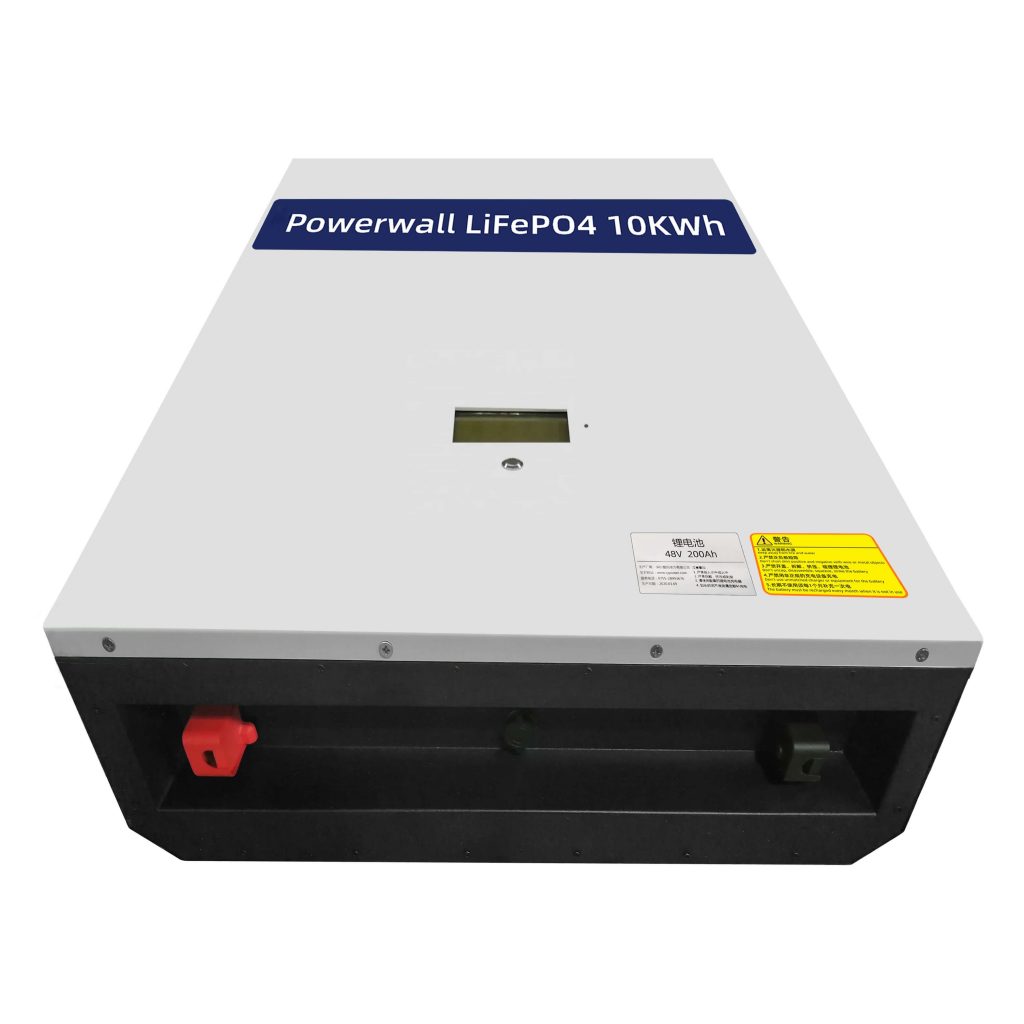

ALL IN ONE 48V 51.2V 100Ah Solar System Lithium Lifepo4 Battery Household Power wall 48V 5Kw 10Kw

2021-03-05 10:13

Spécification:

Technical Parameters
NonArticleParameters
1.PerformanceTypeLiFePO4 Battery (Cell 3.2V 100Ah
Tension nominale51,2 V
Capacité nominale100Ah(0.2C/25°C)
Operating Voltage Range42V~57V (Typical: 51.2V)
Tension de charge57V
Tension de coupure de décharge42V
Charging Current (Max)60A
Discharging Current (Max)100A
DimensionsLongueur520mm
Largeur460mm
la taille200mm
PoidsAbout 52.5KG
2.FunctionInstallation MethodWall-mounted
la communicationRS485
Terminal StudM8 Bolt


Alarm&Protection

Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature, Low Temperature Protection, etc.
3.Working ConditionCooling ModeAutomatic Cold And Hot
Altitude≤4000m
Humidité15%~85%
Température de fonctionnementCharge0°C~50°C
Décharge-10 ° C à 60 ° C
Recommended Operating TemperatureCharge15°C~40°C
Décharge15°C~40°C
Espace de rangement0 ° C à 35 ° C

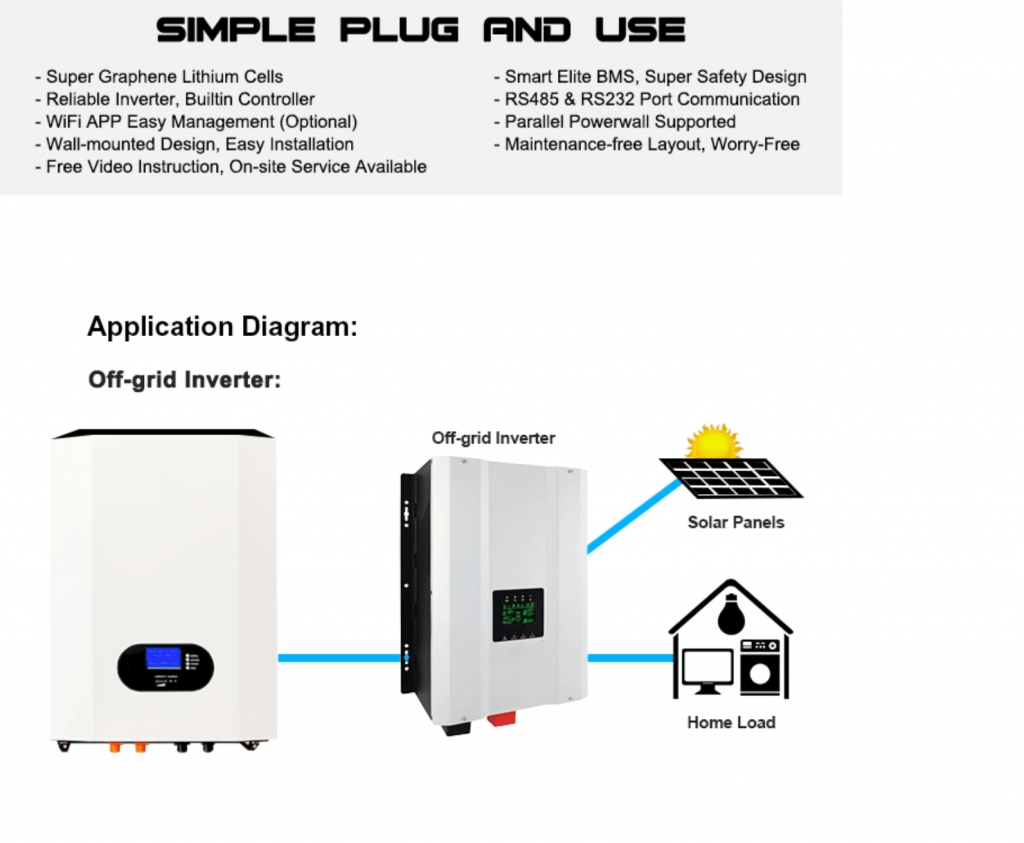

Application Field: Telecommunication, PV Energy Storage, Household Energy Storage etc.









Production Describation

1. 51.2V 100Ah LFP100Ah-16S1P LiFePO4 Battery Packs

2. Real Capacity: 100Ah

3. Usine professionnelle: OEM / ODM sont les bienvenus.

4. UL / CE / ROSH / MSDS / UN38.3 sont approuvés.

5. Densité d'énergie élevée, cycle de vie long.

NON.Itermspécification
1Capacité100 Ah
2Tension51,2 V
3Max. Tension de charge57.0V
4Tension de coupure de décharge42V
5Courant de charge standard60A
6Max. Courant de charge 100A
7Courant de décharge standard 60A
8Max. Courant de décharge continu100A
9Décharge de décharge d'impulsion à 10's 200A 1s
10Résistance interne
11Cycle de vie6000 Times
12Dimension435*875*190mm
13Poids102 KGs
14Température de fonctionnement-20 ° C à 60 ° C

Nos services

1.Fournisseur expérimenté de batterie LiFePO4 / lithium-ion.

2. Équipe professionnelle technique, prodction et servise pour votre service.

3. Alibaba golden supplier, factory recognized by ISO.

4. 7 days / 24 hours service for you, all questions will be dealed within 24hours.

5. Satable Quality--Come from superior material supplier & perfect quality control system.

6.Lower Cost--Not the cheapest but the lowest at the same quality.

7.Good Service--Satified service before and after sale.

8. Delivery Time-- 5-10 Days.

9. Warranty Period--2 Years.

Notre usine

Emballage et expédition
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantitie
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

FAQ

(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.

(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.

(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.

(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.

(5). What kind of guarantee you give?
Our battery the warranty time is 2 years.

Remarque: All products do not support retail, please contact us for product prices!
